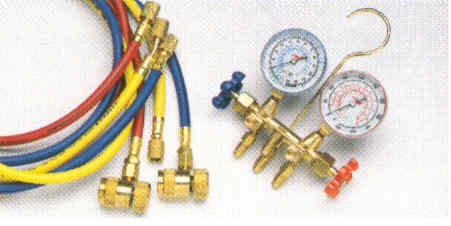

R-134a manifold gauge set

R-134a Complete Manifold Gauge Set
w/Hoses and Professional Dispensing Valve


Part # 8908, 1 each
72" red, yellow, blue, low-permeation, barrier-type hoses, low-profile high and low side quick couplers with shutoff valves, and a professional dispensing valve for 12 oz. cans.
R-134a manifold gauge set

R-134a Complete Manifold Gauge Set w/Hoses


Part # S13010, 1 each
72" red, yellow, blue, low-permeation, barrier-type hoses and low-profile, heavy duty high and low side service couplings.
R-134a manifold gauge set

R-134a Manifold Gauge Set w/o Hoses


Part # 8915, 4 per case
A professional mobile A/C manifold gauge made specifically for R-134a systems.
R-134a charging hose set

R-134a Charging Hose Set


Part # 8120, 6 per case
A set of 72" red, yellow, blue, low-permeation, barrier-type hoses.
R-134a quick couplers

R-134a Quick Couplers


Part # 8945, Low Side, 6 per case
Part # 8946, High Side, 6 per case
An economic way to start servicing R-134a systems! Includes a quick coupler, 7" barrier-type hose and shutoff valve to prevent the release of refrigerant. Shutoff valve will attach to any 14mm Male hose.
R-134a service couplings

R-134a Professional Service Couplings




Part # 8935, Low Side, 4 per case
Part # 8936, High Side, 4 per case
Heavy duty, low-profile, service couplings.
R-12 to R-134a hose conversion kit

R-12 to R-134a Hose Conversion Kit


Part # 8917, 6 per case
Quickly converts your existing R-12 charging hoses over for use with R-134a systems. Includes high and low side quick couplers, a common service hose and shutoff valves to prevent the release of refrigerant. Shutoff valves will attach to any 1/4" SAE Female flare fitting.
R-134a charging hoses

R-134a Charging Hoses
All Johnsen's charging hoses are constructed with the highest quality hose and components in the industry. These low-permeation, barrier-type hoses are rated at 600 PSI working pressure, meet SAE J2196 specifications and are available in a wide variety of lengths. Packed 1 per case.
HOSE LENGTH RED 14mm x 1/2 in ACME 14mm x 1/2 in ACME BLUE 14mm x 1/2 in ACME YELLOW
24 in S15581 S15582 S15583
36 in S15599 S15600 S15601
48 in S15617 S15618 S15619
60 in S15635 S15636 S15637
72 in S15641 S15642 S15643
96 in S15685 S15685 S15687
R-134a recharge kit

R-134a Recharge Kit


Part # 8323, 12 per case
Designed for easy recharging of R-134a A/C systems using 12 oz. cans. Contains dispensing valve, hose and low side quick coupler.
R-134a EZ tapper

R-134a EZ Tapper*
Part # 8013, 6 per case
Slides over can and snaps shut. Also includes an adapter for small cans of oil charge. Makes servicing A/C systems with 12 oz. of refrigerant (and 4 oz. cans of oil charge) cans faster and easier.

New! Part # 8015, 6 per case
Same as #8013 above but also includes an additional fitting and adapter for cans of R-12 refrigerant. Makes servicing R-134a and R-12 A/C systems with 12 oz. of refrigerant (and 4 oz. cans of oil charge) cans faster and easier than ever before. #8013 and #8015 are also available in bulk packaging.

*U.S. Patent #6,041,810 and other patents pending
R-134a dispensing valve

R-134a Professional Dispensing Valve
Part # 8938, 4 per case
For use with 12 oz. cans. Includes large handle for easier operation.
A/C check gauge

A/C Check Gauge


Part # 8907, 12 per case
Measures the level of R-12, R-22, R-134a or in A/C systems.
A/C test thermometer

A/C Test Thermometer


Part # 8925, 12 per case
High quality test thermometer for checking outlet duct and ambient temperatures. Conveniently fits in shirt pocket. Also available in bulk packaging.
R-134a conversion fitting kit

R-134a Conversion Fitting Kit


Part # 9330, 1 per case
Contains a complete assortment of hardware necessary to convert R-12 A/C systems to R-134a. Kit includes standard and 90 degree high/low side conversion fittings, standard and deep Schrader valves, service port and termination caps, thread locking material, service labels and a handy organizer storage box.
R-134a conversion packages

R-134a Conversion Packages


Part # 8942, For 1976 or Older Vehicles, 6 per case
Part # 8941, For 1977 or Newer Vehicles, 6 per case
Part # 8948, For All R-12 Vehicles, 6 per case
Packages include high and low side conversion fittings, a service label and instructions.

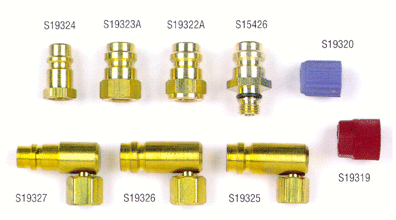

R-134a retrofit fittings

R-134a Retrofit Fittings


These quality brass fittings are ideal for converting R-12 A/C systems to R-134a. Each fitting includes schrader valves and caps.
Part # S19324, Low Side, 7/16-20 Threads, 5 per case
Part # S19323A, High Side, 1976 Vehicles Or Older, 7/16-20 Threads, 5 per case
Part # S19322A, High Side, 1977 Or Newer Vehicles, 3/8-24 Threads, 5 per case
Part # S15426, GM Primary Seal Replacement, Select Late Model GM Vehicles, 5 per case

R-134a 90 Degree Retrofit Fittings


Part # S19327, Low Side, 7/16-20 Threads, 5 per case
Part # S19326, High Side, 1976 Vehicles Or Older, 7/16-20 Threads, 5 per case
Part # S19325, High Side, 1977 Vehicles Or Newer, 3/8-24 Threads, 5 per case

R-134a Retrofit Caps


Part # S19320, Low Side, 5 per case
Part # S19319, High Side, 5 per case
R-134a ACME cap, A/C shrader valves, Thread locking material

Termination Caps


Part # S13509, 5 per case
Terminates unused R-12 service ports when converting to R-134a.

R-134a ACME Cap


Part # S19318, 5 per case
1/2" ACME service caps for cylinders, equipment, etc.

A/C Schrader Valves


Part # S19332, GM Large Bore For Select GM Vehicles, 10 per case
Part # S19331, Standard Schrader Valve, 10 per case

Thread Locking Material


Part # S13510, 1 per case
Conveniently sized tube of thread locking material to permanently attach R-134a or conversion fittings to A/C service ports. 0.2 fluid oz./6ml tube.
Universal valve core tool

Universal Valve Core Tool
Part # S12892, 1 per case
Double-ended valve core removal tool designed to remove/install both standard and large valve cores found in both high/low side service ports for R-12, and R-134a.
Multi-refrigerant manifold gauge set w/hoses

Multi-Refrigerant Manifold Gauge Set w/Hoses
Part # 8904, 1 per case
Part # 8900, Same as #8904 w/o Hoses, 1 per case
36" red and blue, 60" yellow hoses for use with multiple refrigerants including R-12, , R-134a, R-22, R-500, R-502 as well as other alternative refrigerants.
Multi-refrigerant manifold gauges

Multi-Refrigerant Manifold Gauges


Part # S13024, Low Side Gauge, Blue, 1 per case
Part # S13025, High Side Gauge, Red, 1 per case
A quality replacement gauge for any multi-refrigerant manifold gauge set. Features a recalibration adjustment for long-term accuracy.
R-12 to R-134a hose adapter

R-12 To R-134a Hose Adapter


Part # 8014, Retail Packaged, 6 per case
Allows conversion of existing hoses for R-134a service. 1/4" Male SAE x 14mm Male.

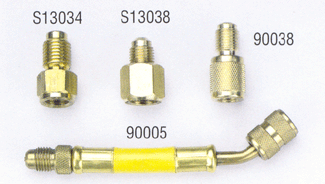

R-134a adapter, R-12 adapter, high side adapter, flex hose adapter

R-134a Adapter


Part # S13034, 1 per case
Converts R-12 service ports to R-134a Automotive. 1/4" Female SAE x 1/2-16 ACME Male.

R-12 Adapter


Part # S13038, 1 per case
Converts Automotive R-134a service ports to R-12. 1/2-16 ACME Female x 1/4" SAE Male.

High Side Adapter
Part # 90038, 1 per case
Adapts 3/16" Male SAE high side service port on newer model R-12 vehicles to 1/4" Male SAE to allow for high side pressure monitoring.

Flex Hose Adapter


Part # 90005, 1 per case
Makes it easy to connect charging equipment to hard-to-reach 1/4" SAE service ports. 1/4" Male SAE x 1/4" Female SAE.
A/C test thermometer A/C Test Thermometer
Part # S12532, 1 per case
High quality test thermometer for checking outlet duct and ambient temperatures. Conveniently fits in shirt pocket. Also available in retail packaging.
Deluxe halogen leak detector, R-12 professional dispensing valve, R-12 auto A/C recharge kit

Deluxe Halogen Leak Detector


Part # 8339, 1 per case
This deluxe Halogen Leak Detector uses the most advanced and sensitive corona discharge sensor ever developed, resulting in detection of 1/10 oz. per year of R-134a in the HI sensitivity range. Meets SAE J1627 specifications for R-12 and R-134a and is also compatible with multiple other refrigerants including R-22, R-500 and R-502 as well as other alternative refrigerants.

R-12 Professional Dispensing Valve


Part # 90013, 1 per case
The R-12 Professional Dispensing Valve is for use with small containers of R-12 and R-22. Includes oversized handle and locking base clamp for easier operation.

R-12 Auto A/C Recharge Kit


Part # 8322, Retail Packaged, 12 per case
This economical kit is ideal for use with small containers of R-12 and R-22. Includes dispensing valve, locking base clamp, charging hose and instructions.


Refrigerant charging hoses

Refrigerant Charging Hoses
All Johnsen's charging hoses are constructed with the highest quality hose and components in the industry. These low-permeation, barrier-type hoses are rated at 600 PSI working pressure, meet SAE J2196 specifications and are available in a wide variety of lengths. Standard hoses includes 1/4' SAE 45° Flare x 1/4" SAE Female Straight fittings. Johnsen's charging hoses may be used with multiple refrigerants including R-12, , R-134a, R-22, R-500, R-502 as well as other alternative refrigerants. R-134a Automotive hoses are also available.
HOSE LENGTH RED BLUE YELLOW
7" S12563C S12563D S12563AB
12" S15334 S15335 S15336
36" S12564A S12565A S12566A
60" S12570A S12571A S12572A
72" S12573A S12574A S12575A
96" S12579A S12580A S12581A
